Fuel Level Sender

20-0847-203 Fuel Level Sender, 0-90 ohm, 8.0in, Shrouded

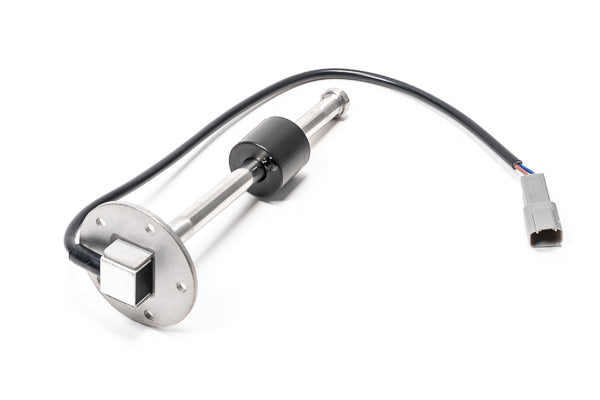

Full stainless steel sealed construction with magnetic float (non shrounded variation shown below).

This fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with all Radium fuel cell surge tanks.

Full stainless steel sealed construction with magnetic float (non shrounded variation shown below).

Suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.

NOTES:
-All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
-Radium does not sell fuel level gauges, but a popular option is this Autometer Fuel Level Gauge
-To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
-If purchased with a Radium FCST or FCST-X, the sender will come pre-installed.
-If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter, FOUND HERE. (Radium Engineering does not have experience with this product, contact Classic Instruments for more information)

INCLUDED
-Level Sensing Probe
-SAE 5-Bolt Gasket
-Stainless Bolts 10-32 (x5)
-Deutsch DT 2P Connector
-Deutsch DT Sockets (x2)
