Pulsar Turbo
PSR 3076 Gen2 Turbocharger
PSR 3076 Gen2 Turbocharger
Regular price
$599.99 USD
Regular price
Sale price
$599.99 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

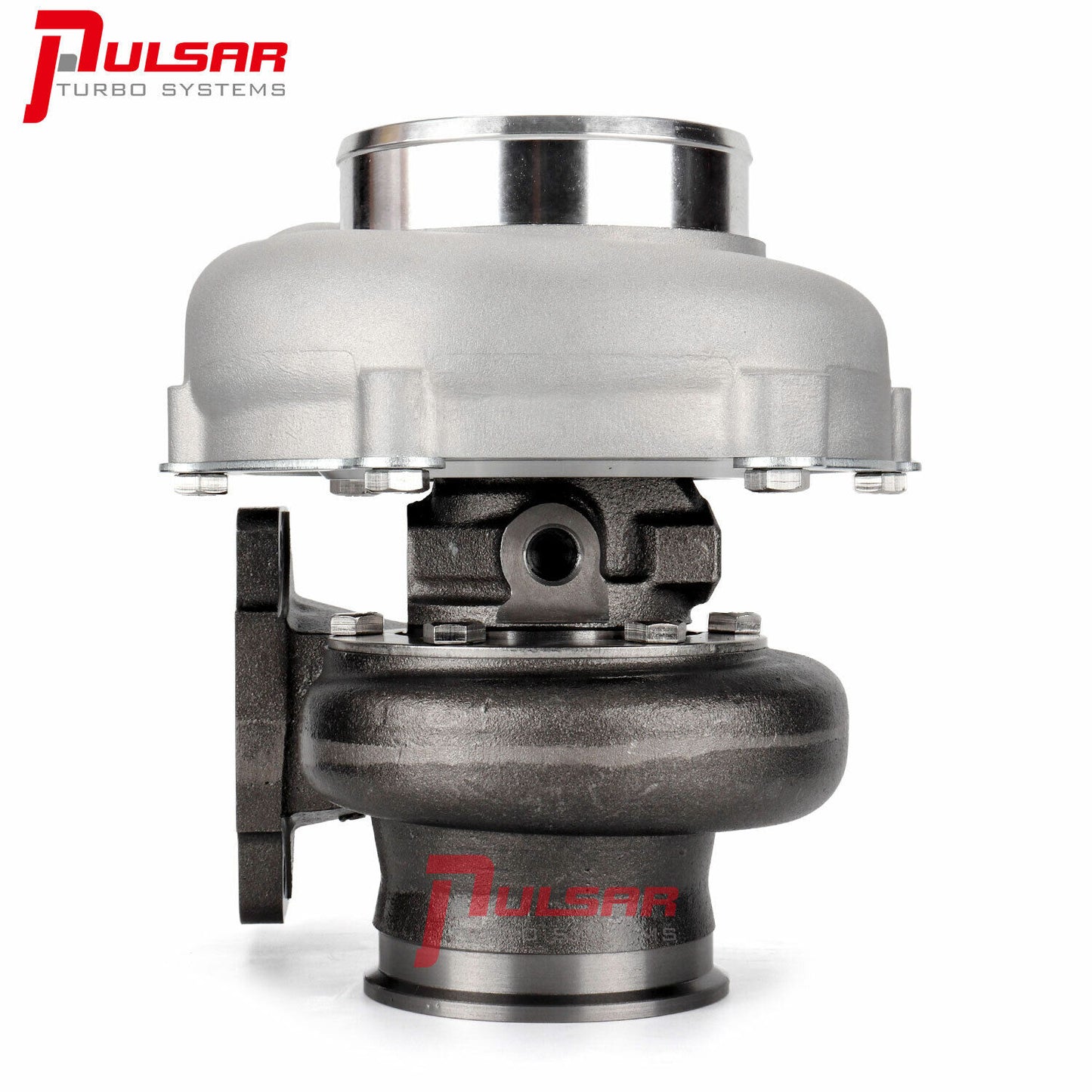

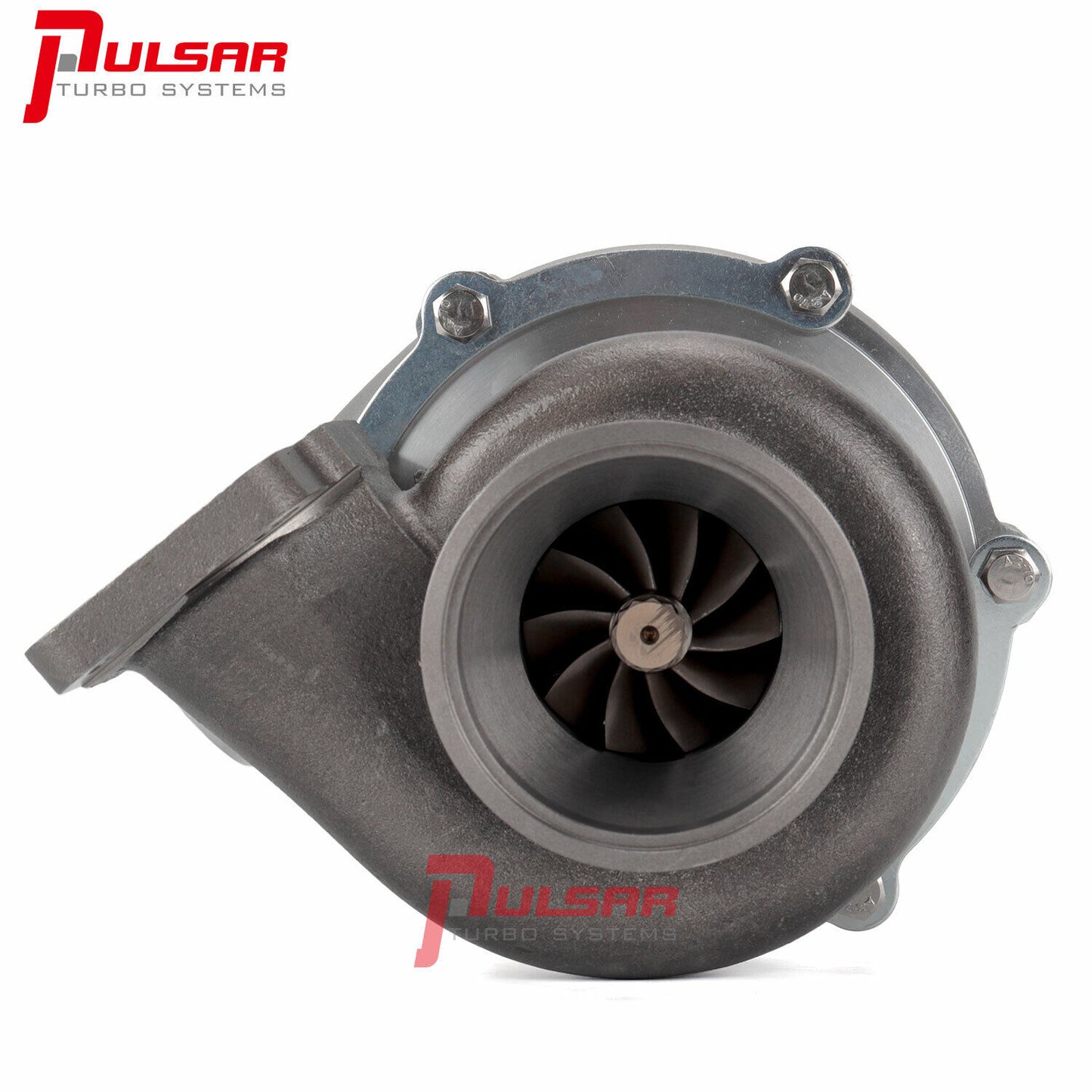

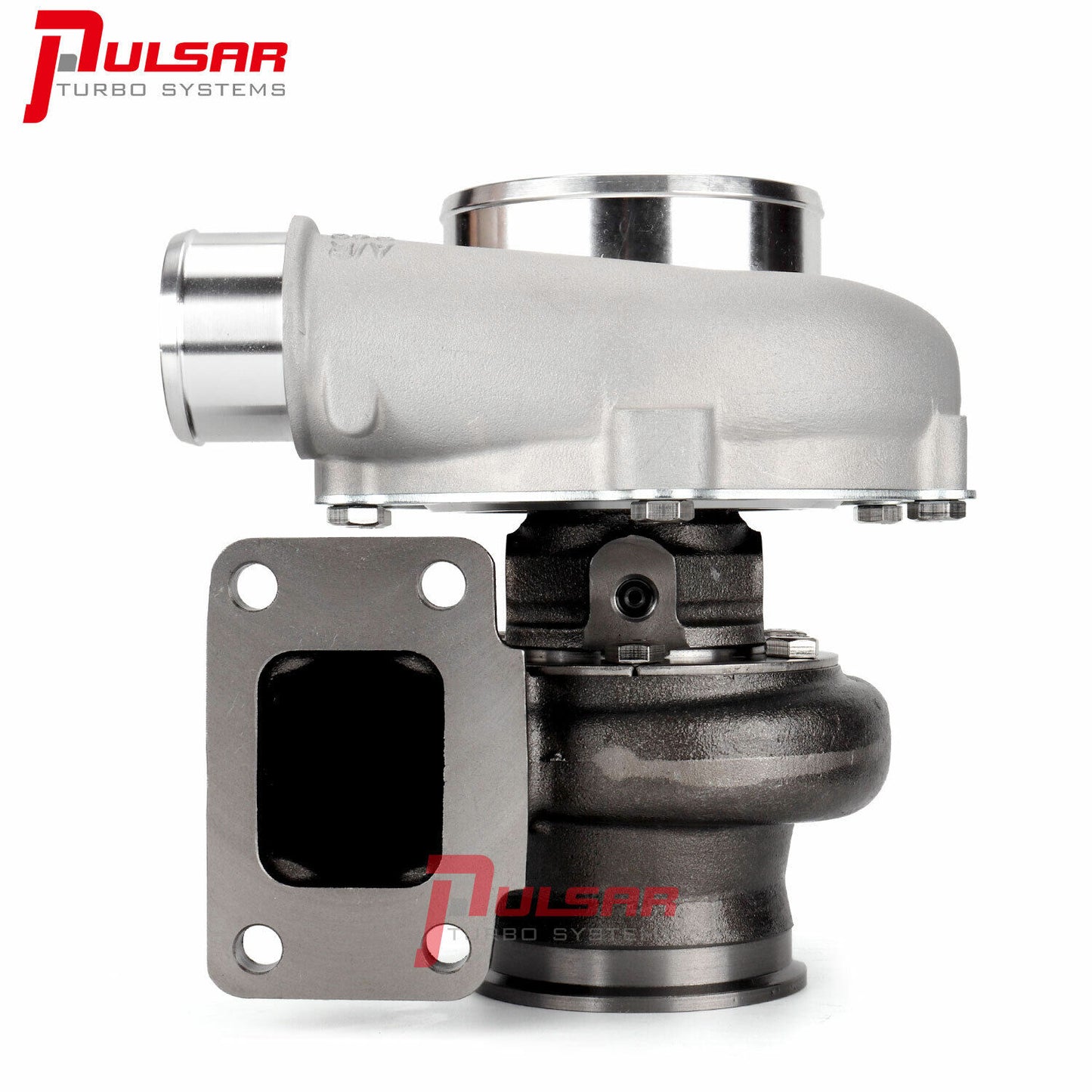

PSR3076 Gen2 Dual Ball Bearing Turbocharger
-
Dual Ceramic Ball Bearing System
-
9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
-
Inconel 713c 10 Blade Turbine Wheel
-
Gen2 Cover Integrated with the Speed Sensor Port
-
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, 0.82, 1.03 A/R dual v-band stainless steel turbine housing etc. turbine housings in option
-
V-Band Flange kit(s) for the exhaust housing included
-
Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
Description
-
Compressor Wheel: 58*76mm
-
Turbine Wheel: 60*55mm
-
Compressor Inlet: 4″ Hose
-
Compressor Outlet: 2″ Hose
-
Turbine Inlet: T3, T4 or 2.5″ V-Band
-
Turbine Outlet: 3″ V-Band (3.55″OD)
-
Oil Feed: -4 AN connect to the Oil Restrictor
-
Oil Drain: Std T3 Flange
-
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
